Mitsubishi CP-M1A High Capacity Dye-Sub Photo Printer


  • Discontinued ProductUse the category menu to find similar products.
  • UPC082400035752

Product Information:

The CP-M1A Dye Sub Photo Booth Printer delivers exceptional print quality, a printing volume up to 750 prints (4×6″) and a new quick and easy media loading design. The  result is a very powerful printer model, saving time and operational costs. Mitsubishi CP-M1A elevates the high capacity dye-sub printer category to a new level not seen since the introduction of the industry’s first A6 roll photo printer.

With the way media for the CP-M1A is packaged, media installation and replacement is so simple and so easy one can do it as fast as 30-seconds, thus minimizing down time and maximizing profit in fast paced high volume applications. The Mitsubishi CP-M1A printer is also one of the few, if not the only, high capacity printer that supports printing discreet 5x7” media in full-bled without any white borders. Just like all Mitsubishi printer, the new CP-M1A printer comes with 3 years warranty with no print-count limit, and advance replacement during the first year.


  • User-Friendly Design – Quick and Easy Media Reload
  • Multiple Print Sizes: 2×6, 3.5×5, 4×6, 5×7, 5×5, 6×6 and 6×8
  • High-Definition Photographs with Brilliant Color Quality
  • Captures Extreme Details in Bright and Dark Prints
  • Prints in Glossy and Matte Finish
  • Warranty: 3 Years Parts and Labor, with 1st year Advance Replacement ERA

User-Friendly Media Replacement:

New pre assembled Paper Roll comes install-ready out of the box, no flanges to remove and re-insert, simply drop the roll of paper in and wind the paper into place.

 pre-assembled ink ribbon and print paper design comes is ready for immediate loading right out of the box! Just drop it in for a quick and easy loading or media replacement. Reducing media reloading time and overall operation cost.

New Mitsubishi CP-M1A media

Exceptional Print Quality:

Designed with Mitsubishi Electric’s proprietary print-head control engine & image processing algorithms, the CP-M1A prints high definition photos and delivers superior color depth and extremely detailed output in bright and dark prints.

High-Capacity Printing:

Made for high-capacity and high-volume printing, up to 750 (4×6) photos. Reduces media reloading, saving time and overall operational cost.

Dust-Resistant Design:

Optimal cooling design with separate airflow for power circuit and thermal print head. Positive air pressure prevents dust particles from entering the print engine. The CP-M1A’s dust resistant architecture minimizes operational and printing issues caused by a dusty environment – perfect for photo booths.

Support Multiple Print Sizes:

Prints all these sizes:
    • 2 x 6''
    • 3.5 x 5''
    • 4 x 6''
    • 5 x 5'' with 5x7" media
    • 5 x 7''
    • 6 x 6'' with 6x8" media
    • 6 x 8''

Media Consumables:

CK-M46S: Prints 4×6" (750 prints),

CK-M57S: Prints 3.5×5" (800 prints), 5×7 (400 prints)

CK-M68S: Prints 4×6" (750 prints), 6×8 (375 prints)

   * Thickness: approx. 210μm

Printer Speed and Capacity:

Print Speed:
    3.5 x 5'' - Approx. 11.1 sec.
    4 x 6'' - Approx. 12.0 sec.
    5 x 7'' - Approx. 20.8 sec.
    6 x 8'' - Approx. 22.5 sec.
    Print speed is based on continuous printing operation in Fine mode with Glossy Finish. Single prints or starting prints will take slightly longer to include media initiation and feeding time

    3.5 x 5'' - up to 450 prints
    4 x 6'' - up to 400 prints
    5 x 7'' - up to 230 prints
    6 x 8'' - up to 200 prints



OS Printer Drivers:
Windows 7/8/10 (32 bit / 64 bit) 2.20 MB
   • Linux 705.20 KB
No Mac OS Drivers at this moment

    USB 2.0
    Front Power Button

Print Method:
   Dye sublimation thermal transfer

    Printer Dimensions:
    11.8 (W) x 12.8 (H) x 14.3(D)''

   300 DPI - Edge-to-edge
   256 per color, 16.7 million colors

    Printer Weight:
    Approx. 30.9 lbs. (14kg)

Buffer Memory:
    128 MB
    Power Supply:
    AC 100 - 240V 50/60 Hz
    4.0 Amps consumption






Related Products

late Sep 2019
sku#: CK-M46S
Mitsubishi 4x6" Paper and Ribbon Media for the Mitsubishi CP-M1A High Capacity Printer.
- 750 prints per roll; 1 roll per box

late Sep 2019

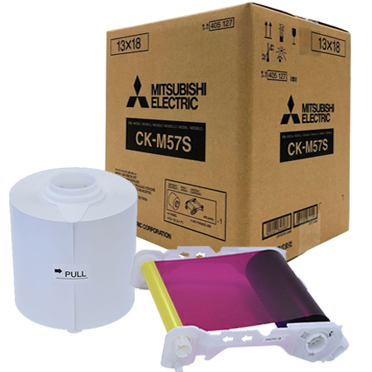

sku#: CK-M57S
Mitsubishi 5x7" Paper and Ribbon Media for the Mitsubishi CP-M1A High Capacity Printer
- 5" x 7" = 400 prints per roll; 1 roll per box
- 3.5"x 5" = 800 prints per roll; 1 roll per box
sku#: CK-M68S
Mitsubishi 6x8" Paper and Ribbon Media for the Mitsubishi CP-M1A High Capacity Printer
- 6"x8" = 375 prints per roll; 1 roll per box
- 4"x6" = 750 prints per roll; 1 roll per box
