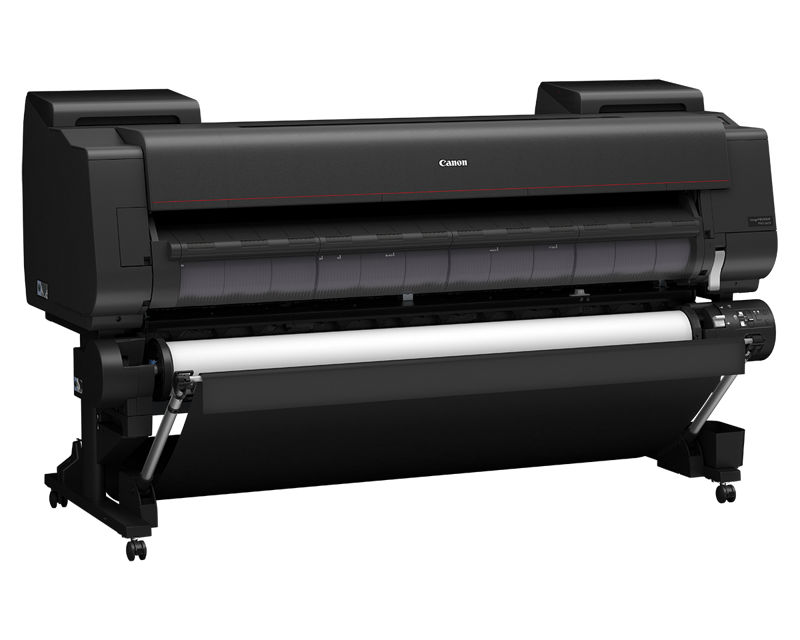

Canon imagePROGRAF PRO-6600 60" Professional Large Format Printer
The Canon imagePROGRAF PRO-6600 60" professional large format printer is built for production photo labs, fine art studios, print service providers and in-house print environments that need gallery-quality output up to 60" wide. This flagship model in Canon’s PRO Series uses the latest LUCIA PRO II 11-color pigment ink system plus Chroma Optimizer to deliver a very wide color gamut, deeper blacks, smooth gradations and clean detail for demanding photo, fine art and high-end graphic applications.
With a maximum resolution of up to 2400 × 1200 dpi, a 1.28"-wide PF-10 print head featuring 18,432 nozzles and droplet sizes as small as 4 pl, the PRO-6600 is engineered for extremely sharp, accurate prints at large sizes. A built-in multi-sensor and color calibration help keep color output consistent from job to job and across multiple PRO Series printers, while a 500 GB hard drive and 3 GB of RAM offload processing from the host computer and support complex files and high-volume workflows.
The PRO-6600 ships with a multifunction roll unit as standard, allowing you to load two rolls for fast media changes, long unattended runs or automatic take-up. Intelligent media handling automates media feeding, detection and optimization to help reduce setup time and waste. With a new ink formulation offering improved lightfastness and high scratch resistance and environmental certifications such as EPEAT Gold and ENERGY STAR®, the PRO-6600 is designed for both durability and more sustainable printing.
Key Features of the imagePROGRAF PRO-6600
- 60" professional large format printer designed for photographic, fine art, proofing and high-end graphic applications.
- LUCIA PRO II 11-color pigment inks plus Chroma Optimizer for an expanded color gamut, improved black density, smoother gloss uniformity and enhanced shadow detail.
- New ink formulation with excellent light resistance and high scratch resistance to help preserve prints during handling, shipping and long-term display.
- PF-10 print head with 18,432 nozzles and 4 pl droplets for precise detail, smooth gradients and consistent output across large print runs.
- Maximum resolution up to 2400 × 1200 dpi for crisp text, fine lines and high-fidelity photographic images even at 60" widths.
- Standard multifunction roll unit provides dual-roll capability for automatic roll switching, long runs or roll-to-roll take-up workflows.
- Intelligent media handling with automatic media loading, media type/width/length detection and optimized feed control to help reduce operator intervention and waste.
- Built-in color calibration and multi-sensor technology help maintain consistent color across different media types and multiple PRO Series devices.
- 500 GB hard drive and 3 GB RAM to handle large, complex files efficiently and improve productivity by reducing host computer workload.
- Energy-conscious design with EPEAT Gold and ENERGY STAR® certifications to support more sustainable printing workflows.
Ideal Applications
- Professional photo and fine art printing up to 60" wide
- Large gallery and exhibition prints that demand accurate, repeatable color
- Limited edition giclée prints and museum-quality reproductions
- Panoramic photography and large-format landscape prints
- High-end posters, retail displays, interior decor and in-store graphics
- Proofing and comp work for agencies, designers and print shops
- In-house printing for studios, universities, corporate marketing teams and creative departments needing oversized output
Workflow & Software Tools
The imagePROGRAF PRO-6600 integrates with Canon’s software suite to streamline large format workflows and help you deliver consistent, predictable results:
- Professional Print & Layout for precise layout, soft proofing and color management of photo and fine art prints.
- PosterArtist (Online and Lite) to quickly design posters, signage and point-of-sale materials using customizable templates.
- Direct Print Plus & Free Layout Plus for drag-and-drop layout, nesting and direct output from multiple applications and file types.
- Accounting Manager to track ink and media usage, helping you monitor and manage printing costs more effectively.
- Device Management Console for monitoring and calibrating multiple imagePROGRAF PRO Series printers from a central interface.
In the Box
Typical package contents for the Canon imagePROGRAF PRO-6600 60" printer include:
- Canon imagePROGRAF PRO-6600 60" Large Format Printer with stand
- Multifunction roll unit (dual-roll capability)
- Starter ink tanks (11 colors plus Chroma Optimizer, 330 ml each)
- 1 print head (PF-10)
- Maintenance cartridge (installed)
- 2" roll holder with 3" core adapters
- Installation guide and setup documentation
- User registration card
- One-year printer warranty statement
- Print head warranty statement
- Call center / support information notice
- Media compatibility flyer
- PosterArtist Web notice flyer
- Safety and environmental information
- iWR service terms leaflet
- High-speed USB interface (built-in)
- Gigabit Ethernet interface (built-in)
- Power cable and mounting hardware
Technical Specifications
| Model |
Canon imagePROGRAF PRO-6600 (60") |
|---|
| Printer & Ink |
|---|
| Print Technology |
Canon Bubblejet on Demand, 12-colour integrated type (single PF-10 print head) |
|---|
| Ink System |
LUCIA PRO II pigment inks — 11 colours plus Chroma Optimizer (12 channels total) |
|---|
| Ink Colours |
Matte Black, Photo Black, Cyan, Magenta, Yellow, Photo Cyan, Photo Magenta, Gray, Photo Gray, Red, Blue, Chroma Optimizer |
|---|
| Ink Tank Sizes |
160 ml, 330 ml, 700 ml (ships with 330 ml starter ink set) |
|---|
| Print Performance |
|---|
| Maximum Resolution |
Up to 2400 × 1200 dpi |
|---|
| Print Head / Nozzles |
PF-10 print head with 18,432 nozzles (1,536 nozzles × 12 colours) |
|---|
| Minimum Droplet Size |
Minimum 4 pl per colour |
|---|
| Line Accuracy |
±0.1% or less (with user adjustment) |
|---|
| Media Handling |
|---|
| Maximum Print Width |
60" (1524 mm) |
|---|
| Media Width |
Roll feed: 6" – 60" (152.4 – 1524 mm); cut sheet: 6" – 60" (152.4 – 1524 mm) |
|---|
| Media Thickness |
0.07 – 0.8 mm (0.002" – 0.03") |
|---|
| Media Feed |
Front-loading roll feed with multifunction roll unit (two rolls), front output; upper-loading manual cut sheet feed, front output |
|---|
| Maximum Roll Diameter |
6.7" (170 mm) outer diameter |
|---|
| Core Size |
2" core standard; 2"/3" core roll holder set (RH2-66) |
|---|
| Maximum Printable Length |
Roll: up to 18 m (application/OS dependent); cut sheet: up to 1.6 m |
|---|
| Borderless Printing (Roll) |
Standard widths including popular photo, poster and ISO sizes, plus user-defined free-size borderless on roll media |
|---|
| Memory & Storage |
|---|
| Printer Memory |
3 GB RAM |
|---|
| Hard Drive |
500 GB encrypted HDD |
|---|
| Connectivity |
|---|
| Interfaces |
USB-A (direct print for PDF/JPEG), Hi-Speed USB-B 2.0, Gigabit Ethernet (1000BASE-T), 100BASE-TX/10BASE-T |
|---|
| Wireless |
Wi-Fi (IEEE 802.11 b/g/n) |
|---|
| Supported OS |
Windows 7/8.1/10/11, Windows Server 2008 R2–2022; macOS 10.15.7 and later (check Canon for the latest compatibility) |
|---|
| Power & Environment |
|---|
| Power Supply |
AC 100–240 V, 50/60 Hz |
|---|
| Power Consumption |
Operation: approx. 85 W; standby: approx. 1.7 W; power off: approx. 0.1 W |
|---|
| Operating Environment |
15–30 °C (59–86 °F), 10–80% RH (non-condensing) |
|---|
| Certifications |
EPEAT Gold, ENERGY STAR® (region-dependent) |
|---|
| Dimensions & Weight |
|---|
| Dimensions (W × D × H) |
With stand and basket open: approx. 78.7" × 38.7" × 46.0" (199.9 × 98.3 × 116.8 cm) |
|---|
| Weight |
Approx. 377 lb (171 kg) including stand and roll unit, excluding ink and print head |
|---|
