All free when you purchase a Sony SnapLab!
Create your own Templates! *read below*
NEW VERSION NOW PRINTS 4x8!
ALSO, PRINT MATTE AND GLOSSY ON SAME PRINT MEDIA!
|
UPDATE: Sony SnapLab UPCR10L : Print All images using a Split Image! Click the HERE to download PDF with Instructions on how to easily configure the UPCR10L SnapLab to "Print All" images when using a split template.
The Sony Snap Lab (UPCR10L) is a compact, portable, standalone digital photo system with robust editing
features right on the printer that lets users manipulate images and make high
quality prints in seconds without the need of a computer. Dye sublimation digital photo printer. printing. With the ability of printing Glossy and ProMatte all on the same Print Media!
The Sony Snap Lab can print directly from camera cards from all current
digital media types. The attached LCD screen allows the user to control color,
density, contrast. It can also adjust B&W and sepia effects, red-eye reduction
and custom graphics. This unit also does package, multi-up and index printing.
Printing a 3.5 x 5" takes approximately only 13 seconds, a 4 x 6" can be printed in approximately 16 seconds and a 5 x 7" can be printed in approximately 17 seconds. It also prints 4x8.
Ultimate Convenience
Personalize your prints on-location. Quick, easy-to-use, and easy to take with you, the SnapLab™ Digital Photo-finishing system is your solution for customizing and printing high-quality digital images on-site. Built to fit in small spaces and weighing only 24 pounds, you can transport the SnapLab system easily between your business and your home. The SnapLab system is incredibly flexible, accepting today's most popular media to load and transfer image data to the printer. Once media is inserted into the printer, simply view, edit and enhance digital images with the user-friendly interface integrated on the touch-sensitive color LCD panel.
Professional Quality
Print digital images into crisp, life-like digital photos. Enjoy, share, and sell photo-lab-quality prints from your SnapLab™ Digital Photo-finishing system. Sony's high-speed roll dye sublimation technology creates vibrant colors and natural, continuous tones. Provide associates and customers with long-lasting digital photos when you print on Sony's UV-archival quality paper |
High Speed/High Quality
- Share photos instantly
- 4X6 prints in 15 seconds.
- High volume printing in short
time.
- Photolab like quality.
- No PC needed
- Simple to use interface
- Intuitive interface allows end users to use
without help
- Easy, no-mess media replacement
|
Compact and Stylish
- Only 24lbs - Easy to move
- Small footprint- Fits almost anywhere
- Adjustable LCD tilt angle
- Zoom, crop, rotate
- Color adjustment
- Red-eye reduction
- Sepia/Black and White
- Add borders and text
- Prints split images and package print
|
Who has benefitted from the Sony SnapLab?... Wedding & Event Photographers, Fundraisers
The SnapLab, with the help of 1-2 assistants, can be a valuable accessory to any event. So often, guests have to wait for months for the professional photographer's photos to be ready to order, and by that time, many have lost interest in the purchase. With the help of an assistant, the SnapLab can be utilized as a kiosk at the event. Guests can look through and select images on the 8" LCD display, purchase the photos, and take prints home with them from the event. Within the SnapLab, there are also options to add event names, additional text, borders, and more - and all within the system - no additional computer or printer needed. The SnapLab grabs images directly from a memory card.
The Sony Snap Lab can be used as a stand alone printing station or
connected to a computer. Computer requirements are Windows 2000
Professional/XP Professional/XP Home Edition or Macintosh OS 10.3 and a USB
2.0 connection.
Now with SnapPay!
An exciting new Wireless Snapay product is available for use with Sony SnapLab.This remote control unit helps cashiers wirelessly and conveniently control the kiosks from a remote location up to 328 feet away - - - while still maintaining customer privacy. When your customer selects the photos they want printed, the dollar summary total is displayed on the Snapay’s LCD screen. The customer is then instructed to pay the cashier. Once payment is received, the cashier can release the print job to the appropriate kiosk. Snapay displays print quantity, print size and total order cost!
• SnaPay Wireless Terminal (UPAWPAT1)
• Wireless Dongle ( UPAWPD1)

Sony DPPA-BT1 Bluetooth USB Adaptor is now available for the
Sony SnapLab Printer!
Print wirelessly using Bluetooth®! No need for messy connections or
cables, use this tiny Bluetooth® adaptor to connect to compatible Bluetooth®
devices. Mobile phones can now capture high mega pixels that produce quality
images for printing. For more information on the positive effect of cell phone picture marketing click HERE!
Latest
SnapLab Driver
and Firmware: |
How to create a Photo
Template in SnapLab PDF: |
Photoshop Plugin w/ PDF instructions: |
|
|
|
Specifications
| Specifications |
Detail: |
| Operating Humidity |
20% to 80% |
| Operating Temperature |
5°C to 35°C (41°F to 95°F) |
| Pixel Gross |
"2UPC-C15: 1,536 x 2,148 dots 2UPC-C14: 1,248 x 1,848 dots 2UPC-C13: 1,100 x 1,536 dots (the top, bottom, right, left portions will not be printed by about 2mm)" |
| Power Consumption |
3.0 to 1.3A |
| Power Requirements |
AC 100 to 240V
50/60Hz |
| Printing Sizes |
"2UPC-C15: 5" x 7" (127 x 178 mm) 2UPC-C14: 4" x 6" (102 x 152 mm) 2UPC-C13: 3.5" x 5" (89 x 127 mm)" 4x8 |
| Printing System |
Dye Sublimation Thermal Transfer |
| Printing Time |
"2UPC-C15: Approximately 17 seconds1 2UPC-C14: Approximately 16 seconds1 2UPC-C13: Approximately 13 seconds1" |
| Safety Standards |
UC version: UL60950-1 listed CSA C22.2 No.60950-1
CE Version: EN60950-1 |
| Supported Peripherals |
Microsoft Windows 2000
XP Professional
XP Home Edition |
| Time/Capacity |
"2UPC-C15: 172 prints per roll/ribbon cartridge 2UPC-C14: 200 prints per roll/ribbon cartridge 2UPC-C13: 300 prints per roll/ribbon cartridge" |
| Type of Use |
"Paper Feed Method: Roll paper, Automatic loading from paper holder Ink Supply Method: Ink ribbon cartridge" |
Graphics
| Specifications |
Detail: |
| Format(s) Supported |
"JPEG: JFIF 4:4:4, 4:4:2, 4:2:0 (baseline JPEG), Exif 2.2.1 compatible, DCF 2.0 compatible TIFF: Exif 2.2.1 compatible (TIFF-RGB non compressed) BMP: 24 bit Windows format (Some versions of the file formats may not be compatible)" |
Hardware
| Specifications |
Detail: |
| LCD Panel Type |
"8" touch-sensitive TFT color display panel (640 x 480 pixels, RGB)2" |
| Media Slot |
"Memory Stick (1): (Memory Stick®, Memory Stick PRO™, Memory Stick Duo™ and Memory Stick PRO Duo™ media compatible) SD Memory Card (1) MultiMediaCard (1) CompactFlash® (Type I / II) (1) xD-Picture Card (1) SmartMedia (1)" |
Image Performance
| Specifications |
Detail: |
| Compatible Image File Format |
JPEG:
JFIF 4:4:4
4:2:2
4:2:0 (baseline JPEG)
Exif 2.2.1 compatible DCF 2.0 compatible
Tiff: Exif 2.2.1 compatible (Tiff-RGB non compressed)
BMP: 24 bit Windows format
(Some versions of the file formats may not be compatible) |
| Image Adjustment |
Crop
Color adjust
Filter (Sepia / B&W) |
| Print Order When Print From Memory Cards |
Selected image
All image
Index
Border Composition
Split Image |
Inputs and Outputs
| Specifications |
Detail: |
| RS232 Control |
External control interface (D-SUB 9-pin connector) for future peripheral support |
| USB Port(s) |
1 [USB(B) for PC: Hi-Speed USB (USB 2.0)] |
LCD Display
| Specifications |
Detail: |
| Screen Size |
8-inch touch sensitive TFT color display |
Operating Conditions
| Specifications |
Detail: |
| Operating Humidity |
20% to 80% |
| Operating Temperature |
5°C to 35°C (41°F to 95°F) |
Power
| Specifications |
Detail: |
| Power Requirements |
100 to 240V AC, 50/60Hz |
Printing Performance
| Specifications |
Detail: |
| Gradation |
256 levels (8 bits) each for Yellow
Cyan
Magenta |
| Image Pixels Transferred |
2UPC-C15: 1536 x 2148 dots
2UPC-C14: 1248 x 1848 dots
2UPC-C13: 1100 x 1536 dots |
| Ink Supply Method |
Ink ribbon cartridge |
| Interface |
Memory Stick
Memory Stick x1 (Memory Stick
Memory Stick PRO
Memory Stick Duo
Memory Stick PRO Duo compatible)
SD Memory Card
MultiMediaCard x 1
CompactFlash (Type I / II) x 1
xD-Picture Card x 1
SmartMedia x 1
Expansion Slot
CompactFlash (Type I / II) x 1
PC Connection
USB(B) x 1 for PC: Hi-Speed USB (USB 2.0)
USB Host Port
USB(A) x 1 for mass storage class device: USB flash memory compatible
Expansion Terminal
RS-232C (D-sub 9-pin) x 1 for future peripheral support |
| Paper Feed Method |
Roll paper
Automatic loading from paper holder |
| Print Capacity |
2UPC-C15: 172 prints per roll/ribbon cartridge
2UPC-C14: 200 prints per roll/ribbon cartridge
2UPC-C13: 300 prints per roll/ribbon cartridge |
| Print Size |
2UPC-C15: 5 x 7 inches (127 x 178 mm)
2UPC-C14: 4 x 6 inches (102 x 152 mm)
2UPC-C13: 3.5 x 5 inches (89 x 127 mm) |
| Printing Method |
Dye Sublimation Thermal Transfer |
| Printing Time |
2UPC-C15: Approximately 17 seconds
2UPC-C14: Approximately 16 seconds
2UPC-C13: Approximately 13 seconds |
| Resolution |
300 dpi |
Safety Regulation
| Specifications |
Detail: |
| Regulation Compliance |
UC version: UL60950-1, listed CSA C22.2 No.60950-1 CE Version: EN60950-1 |
Software
| Specifications |
Detail: |
| Bundled Software |
Printer Driver for Microsoft® Windows 2000, XP Home Edition and XP Professional |
Weights and Measurements
| Specifications |
Detail: |
| Dimensions (Approx.) |
"10 7/8" x 11 7/8" x 14 15/16" (275 x 300 x 380mm) (excluding extruding parts, 21 7/8" (555 mm) in depth with paper tray)" |
| Weight (Approx.) |
24lbs 4oz (11kg) excluding the 5.6oz (0.16Kg) paper tray |
Sony Worldwide Repair Parts Center  Email:
ProParts@am.sony.comPhone:
1-800-538-7550, 9:00a.m. - 7:00 p.m. ET, Monday through Friday.
Sony Snaplab Model #UP-CR10L PARTS:
$37.43 right paper adapter part #A8286-238C
$28.30 left paper adapter part#A8286-297A

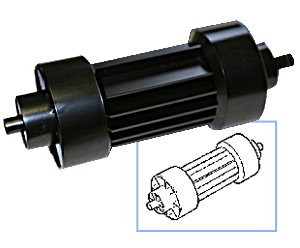

$17.86 Paper Core part# 3990-46301
$99.99 Paper Cassette part# UPCAPH1 available
only through Sony Dealers ( Foto Club, Inc. 888-921-3686)
Next Day Air Saver Thursday $18.00
2nd Day Air For Friday
$15.00
Fedex Ground
$11.50
Call before 1:00 pm Pacific Coast Time, to ship out today.
|
