Sony UPCR20L Snap Lab B-stock

**CALL FOR PRICE AND AVAILABILITY **

An exciting new SnapLab UPCR20L V1.70 firmware is available! Lots of new features!

Firmware Version V1.70 End of September 2009
 - Text can be added to individual photos from edit menu!
 - Reset button will be available on edit menu!
 - Menu button selection on main menu (i.e. can eliminate "Print All" as an option)!
 - Go Back button available on order confirmation screen !

Previous Firmware Version V1.60 Available Now!
 - UPDR80 supported as external printer ! (Scaleable solutions are a Sony advantage.)
 - 4x8 Photo cards available from main menu!

It can be downloaded from the SnapLab support page at www.sony.net/snaplab (or direct link http://www.sony.net/Products/DP-driver/snaplab/connect/index.html).

Noticeable items are:

• Only one printer can be attached as an external printer (UP-DR200 or UP-DR80) not both.
• 4x8 photo cards are printed in sets of 3.
• Watermark and Luster finish are not supported on the UP-DR80 when connected in this fashion.
• Sample 4x8 borders (baby) are available for download.
• The UP-CR20L utility will be updated to allow for creation of a 4x8, 8x10 and 8x12 border.

. Prices are subject to change, and prices are good while supplies last.

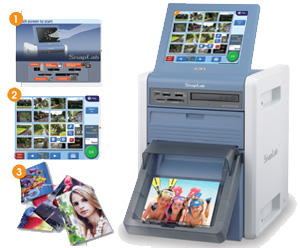

The B- Stock UPCR20L SnapLab™ Digital Photo Printer, all-in-one photofinishing solution. With the increasing demand for instant digital photo prints, the SnapLab UPCR20L printer offers small to medium retail environments a high-speed full-featured mini-kiosk solution. Retailers can capture a portion of this growing instant digital photo print market with low capital hardware investment. For the cost of a single kiosk, retailers can put in a bank of UPCR20L SnapLabs and have a photo department. Plus, there is no labor needed to run this equipment. Plug it in and you are in business!  This UPCR20L SnapLab offers 4x6, 5x7 and 6x8 instant prints – in Glossy and ProMatte™ surface - from one media sku. This printer also boasts a Wireless Shoot & Print feature streamlining the work flow for the event photographer.

Features:

Compact and Stylish All-In-One Design
The UPCR20L is designed to be a standalone photofinishing solution using high-performance dyesublimation thermal transfer print mechanism, touch sensitive LCD and a variety of media input slots. Its
compact and stylish design enables this mini-kiosk solution to fit in a small footprint. In addition, the large LCD can be angled for comfortable operation by endusers. Thanks to the UPCR20L all-in-one design, installation couldn’t be easier. There is no complicated assembly or cabling required. This entry-level mini-kiosk solution is operational in a few minutes so retailers and event managers can be up and running immediately.



Sony ProMatte™ Finish
An industry first in instant digital photo printing, Sony’s ProMatte and glossy prints can be produced on the UPCR20L by using the same print pack. The different finishes are produced using Sony’s unique lamination technology so there’s no need to change paper to achieve this unique look.

Easy Operation with Large LCD
With the adoption of a 10.4 inch touch sensitive color LCD (viewable area measured diagonally) and user friendly Graphical User Interface (GUI), performance is an easy and comfortable operation. End users simply insert the digital media card and touch the onscreen images and buttons to easily perform actions and instantly print digital photos.

High-Speed and High-Quality Photo Printing
The UPCR20L digital photo printer offers high-speed printing:
- Approximately 8 seconds* for 3.5 x 5 inch prints
- Approximately 8 seconds* for 4 x 6 inch prints
- Approximately 13 seconds* for 5 x 7 inch prints
- Approximately 15 seconds* for 6 x 8 inch prints
This high-speed printing never keeps customers waiting long and thanks to Sony’s dye-sublimation print technology, the UPCR20L delivers superb picture quality every time. * Excludes image processing time

Value-Added Photo Prints
The SnapLab UPCR20L digital photo printer offers various prints which can be premium priced vs. a standard 4x6 instant digital photo.
These variations can include:
- Border prints
- Split image prints
- ProMatte finish
- Sepia/B&W prints

Borders (FREE Templates with System purchase)
* Must have UPDR80 Printer for photo template sizes: 8x10 and 4x8 photo template prints and firmware V1.60 or greater needs to be installed

The UPCR20L offers high-quality instant digital prints with the easy addition of printed or transparent borders. Users can easily overlay preloaded images, event logos and design frames without having to use a PC. Border designs can be created utilizing image editing software, such as Adobe® Photoshop®, and then saving the data in a PNG format. Information on how to create a SnapLab template" Click here. Created borders can then be exported in the desired format with the supplied SnapLab utility software. Further, data can be exported directly to a CompactFlash™ card or imported to a CompactFlash card by using the expansion slot on the front the SnapLab printer.


Note! Border data must be preloaded onto a CompactFlash card and then inserted into the expansion slot compartment found on top of the SnapLab UPCR20L printer.
Note! UPCR10L borders are not compatible with UPCR20L.

Borders with UPDR80 Printer (attached)
Increase your profits by adding an optional UPDR80 printer, this compact footprint offers a full range of prints from standard 4x6", 5x7" and 6x8" on the SnapLab UPCR20L to 4x8 photo cards and 8x10 enlargements/Calendars on the UPDR80 printer!
You get all these templates for free with purchase of UPDR20L SnapLab Printer. Note! To utilize this feature, firmware V1.60 or greater needs to be installed on the UPCR20L SnapLab These borders cannot be used on a UPDR80 as a stand-alone printer.

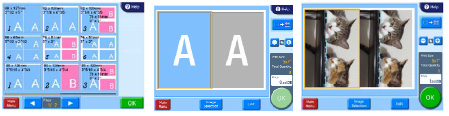

Split Images
The UPCR20L offers "Split Image"templates (based on media size) that enables users to create a variety of multiple digital photos for novelty products, addinga dditional value to each print.




Sepia and B&W Prints
The UPCR20L can produce Sepia and B&W transformation functions to allow prints to look like old time photos.




Variety of Photo Print Sizes
The UPCR20L can produce four (4) different print sizes: 3.5x5”, 4x6”, 5x7” and 6x8”. By utilizing the “Half Cut” feature, the 6x8 media roll can be utilized to produce 2-up 4x6 or a 5x7with white border. This allows for ultimate flexibility without having to replace different size print packs.



Various Digital Media Inputs
The UPCR20L accepts today’s most popular digital media. These include memory cards, USB flash memory and CD/DVD disc (read-only; CD-R/RW, DVD-R/RW).



Wireless Shoot-to-Print Feature
With the use of digital cameras capable of FTP auto file transfers (i.e. Nikon D300, Canon D40), the UPCR20L can be used to automatically receive and print images. The images are transferred via wireless (Wi-Fi) or wired (10/100 Base T) connection and stored in a HOT folder in the expansion CompactFlash card as an FTP server. This new feature allows event photographers to concentrate on photo shoots not print management. This feature dramatically improves and streamlines the professional photographer’s workflow at event venues and allows for one-man operation. In the HOT folder, photographers can select either:

• Erase printed images after print: As name implies, once images are printed the files are
deleted (stored in the camera memory card)

• Leave printed images after print: Photographer can re-print saved images upon request.
Further, it’s possible to overlay borders, logos, photographers name, event name or custom
designed frame onto all transferred images



Note! Requires a Silex USB Wireless Adapter and CompactFlash card (purchased separately). Necessary data must be preloaded onto the CF card and inserted into printer’s expansion slot.


Security Cable Compatibility
The UPCR20L system is equipped with a security cable slot. The printer can be conveniently tethered to deter theft. Visit www.kensington.com for various security-cable solutions.




Simple Firmware Updates
UPCR20L printer firmware can be updated via memory card or CD/DVD disks. Updates can be performed easily from the “system log” in the administrator menu. Firmware available at www.sony.net/snaplab.

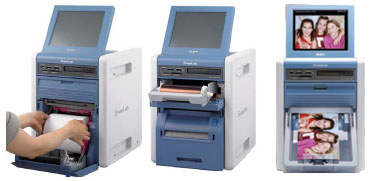

Easy Maintenance
The front-loading and auto-loading mechanism of the UPCR20L enables easy replacement of paper roll and ribbon. Simply open the front door and insert paper roll and ribbon. For added security, the ribbon door locks while power is on. If necessary, lock can be released in administration menu


.
To help prevent defects such as white stripes and speckled scratches, thermal heads and rollers should be cleaned periodically. The recommendation is cleaning after every 2,000 prints. Cleaning is easy by utilizing the cleaning ribbon and cleaning sheet.

Watermark Order Numbers & File Names on Prints
The order number or file name can be printed by the UPCR20L on the edge of each digital photo in a “watermark” fashion. By using reflection and angling the photo, the order numbers and file names can be seen. This feature allows the user to easily sort the prints by order numbers or re-print images by using the file name.

Screen Saver Customization
When the printer is not in operation, owners can display their promotional images on the UPCR20L color LCD. These images can be company logos, promotional information such as new seasonal borders, price promotion etc. A maximum of five (5) images can be displayed sequentially as promotional images. The custom promotional image can be created using photo editing software and preloaded onto a CompactFlash card and inserted into the expansion slot.
File Name: promo1.bmp/jpg ˜ promo5.bmp/jpg
Size: 640 x 480 pixel
Format: BMP 24Bits Windows Format or JPEG

Image Preload Function
The printer owner can select whether data for ordered images are preloaded into the UPCR20L before printing starts. If the image preload is enabled, data for ordered are loaded from a memory card or CD/DVD onto the CompactFlash card before printing starts. When loading is completed, a message prompting the user to remove the memory card or CD/DVD disc is displayed. This message reminder minimizes the risk of user leaving their digital media in the printer.

Multiple Language Support
The UPCR20L SnapLab printer supports 12 languages which can be preselected from the administration menu. Owners can select 6 of the 12 offered languages to be displayed.

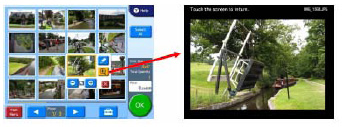

Large Image Preview
A large image preview screen is available by touching the magnifying glass icon. This allows customers to check the detail of the photo before ordering a final print.



Band Pricing
Setting band pricing is easy on the UPCR20L SnapLab printer. Owners can vary the price per print based on the number of prints ordered. This allows volume discounts for large orders. If desired, an initial fee can also be preset as a service charge to be added to every customer order regardless of the final order quantity.

Operation Modes:
The UPCR20L SnapLab printer offers three operation modes. The printer owner can select from “Full Mode”, Quick Print” mode and “Event” mode. If the SnapLab printer is being utilized as a self-service photo kiosk in retail locations, either Full or Quick print modes should be selected. Full mode offers end-users a variety of options (editing features, add borders, split images etc.) while Quick print mode allows users to print their photos quickly and easily. The Event mode is designed for non-retail applications such as on-site photo printing at events where a payment procedure is not necessary.

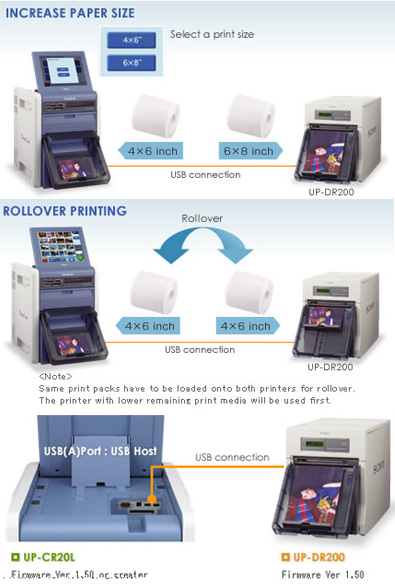

External Printer Connectivity:
The UP-CR20L can connect to an external printer and use it as a slave printer.
The external printer can print on media sizes that the UP-CR20L doesn't support, which means shop owners can provide customers with two print sizes without having to replace the paper media.
Moreover, it supports rollover printing. If the UP-CR20L runs out of print media, the external printer can take over printing continuously and automatically.
This feature minimizes interruptions in service caused by the printer running out of paper.

Now with SnapPay!
An exciting new Wireless Snapay product is available for use with Sony SnapLab.This remote control unit helps cashiers wirelessly and conveniently control the kiosks from a remote location up to 328 feet away - - - while still maintaining customer privacy. When your customer selects the photos they want printed, the dollar summary total is displayed on the Snapay’s LCD screen. The customer is then instructed to pay the cashier. Once payment is received, the cashier can release the print job to the appropriate kiosk.  Snapay displays print quantity, print size and total order cost!

• SnaPay Wireless Terminal (UPAWPAT1)
• Wireless Dongle ( UPAWPD1)

Specifications:

OS • Windows XP Home Edition/XP Professional,
Windows Vista Home Basic/Home Premium/
Business/Enterprise/Ultimate
Display • 264mm (10.4 inch) touch sensitive
TFT color display 640 x 480 pixels, RGB
Acceptable digital media • MemoryStick
MemoryStick Pro
MemoryStick Duo
MemoryStick ProDuo
CompactFlash
xD-Picture
mini-SD
USB Memory Devices
CD-R, CD-RW
DVD-R, DVD-RW
Interface • CompactFlash
USB(B) for PC or SX-WSG1
USB (A) for expansion
RS-232C for external connection
Bluetooth™
Power consumption • 100-240V 50/60 Hz
6.3-3.0A max. (while printing)
Mass • Approx. 23kg (50.71lb)
Dimensions (Wx H x D) • Approx. 338 x 442 x 454mm
(13 3/8 x 17 1/2 x 17 7/8 inches)
(excl. the maximum projecting parts)
----
Power requirements 100 to 240 V AC, 50/60 Hz
Input current 6.3 to 3 A max. (While printing)
Operating temperature range 10 to 35 °C (50 °F to 95 °F)
Operating humidity range 20 to 80%
Dimensions (W x H x D) Approx. 338 × 442 × 454 mm (13 3/8 × 17 1/2 × 17 7/8 inches) (excluding the maximum projecting parts)
Mass Approx. 23 kg (50.71 lb) (printer only)
Printing system Dye sublimation thermal transfer
Resolution 330 dpi
Gradations 8 bits (256 levels) each for yellow, magenta and cyan

Printable pixels
2UPC-R203 series: 1210 × 1728 dots
2UPC-R204 series: 1382 × 2048 dots
2UPC-R205 series: 1728 × 2380 dots
2UPC-R206/2UPC-C26 series: 2048 × 2724 dots (The top and bottom and right and left portions will not be printed by about 2.5 mm.)

(Printing time may vary depending on the conditions of use.)
USB host port For the USB memory (3)
Memory card slots “Memory Stick” interface slot (1) SD Card interface slot (1) CompactFlash card interface slot (1) xD-Picture Card interface slot (1) Expansion slot CompactFlash card interface slot (1)
LCD display 10.4-inch touch sensitive TFT color display 640 × 480 pixels, RGB

Sony UPCR20L Resource Downloads:
CLICK HERE for UPCR20L Printer Driver	WindowsXP/Vista 15.1MB (Ver.1.00 (New Release *The firmware V1.50 or greater is required on the UP-CR20L)
CLICK HERE for UPCR20L Printer Firmware	Ver.1.51 - Ver.1.60
CLICK HERE for UPCR20L Printer ICC PROFILE	Single ICC Profile 288Kb
CLICK HERE for UPCR20L Utility Template Software	Use this FREE software to export a Photo Template, Photo Stamp that you created into SnapLab. 1.71Mb Windows/XP/Vista (Ver.1.02)
CLICK HERE for UPCR20L Border Template Instructions	A step by step PDF that shows how to create a Border template for the Sony SnapLab™ UPCR20L Printer. 1.11Mb (pdf)
CLICK HERE for UPCR20L Instructional Printer Manual		An easy to understand (12) page instructional PDF manual on all of the features of the SnapLAb UPCR20L.. 608Kb (pdf)
