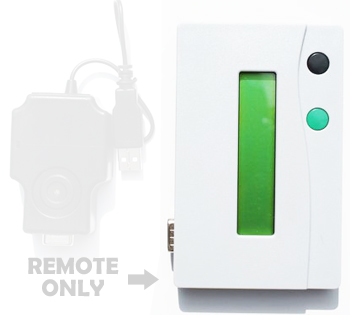

Snapay Wireless Terminal (Remote)

sku# UPAWPAT1
Our Price: $199.00
Qty:
  • Product Brochure:
Product Information:
WIRELESS SNAPAY DESCRIPTION
Wireless Snapay is a remote control system for use with the SnapLab and PictureStation instant digital
photo kiosks. This system helps cashiers wirelessly and conveniently control the kiosks from a remote
location up to 100m (328 feet) away while still maintaining customer privacy.
When the customer selects the photos they want printed, the dollar summary total is displayed on the
Snapay’s LCD screen. The customer is then instructed to pay the cashier. Once payment is received,
the cashier can release the print job to the

WIRELESS SNAPAY SPECIFICATIONS
PRODUCTS SUPPORTED
• SnapLab UP-CR10L (firmware version 3.11 and greater*)
• SnapLab UP-CR20L (firmware version 1.01 and greater*)
* Firmware can be downloaded from the Snap Lab Support Page at www.sony.net/snaplab
• PictureStation UPA-PC500 (software version 1.0 and greater)

SUPPORT FOR
• Accepting payment and printing the customers pictures
• Cancelling print jobs
• Displaying printer status to the cashier
• Simple pairing configuration for simple installation
• Ability to join at least 8 printers and at least 8 terminals into one network
- 1 Terminal to 8 Printers
- 8 Terminals to 1 Printers
- 8 Terminals to 8 Printers
• Any terminal can operate any printer
• Configuration via a menu system, no dip switches
• Choice of languages at the terminal (all Western European, US and others)
• Non-volatile storage for at least 100 languages
• Includes a 2GB CF card
• CE, FCC and UL certification for US safety regulation

PACKAGE CONTENTS
• Either of One (1) Terminal or One (1) Dongle
• One (1) Power Adapter
• One (1) Compact Flash card, 2GB, pre-programmed (*included with Dongle only)
• One (1) User Manual
• One (1) Instruction Sticker

2GB CF CARD INCLUDING:
• 5 Languages - English, Spanish, French, German, Italian (*English is the default language)
• UPCR10L and UPCR20L Border Templates for 3.5x5”, 4x6”, 5x7” and 6x8” photos

LCD DISPLAY
20 characters x 2 lines

POWER REQUIREMENTS, OPERATING TEMPERATURE, HUMIDITY RANGE
100 to 240 V AC, 50/60 Hz. +5.0 V 1.3A DC output
5°C to 35°C (41°F to 95°F); 20% to 80%

DIMENSION (W x H x D)
Terminal: 5 1/4” W x 3 1/4” H x 1/
